CHANGEOVER 100A AUTOMATIC ATS CO 0100-AT

0 Reviews 0 Orders 0 Wish listed

RWF1,639,440 (Tax : )

Quantity:

Total price :

Overview
Reviews

Description

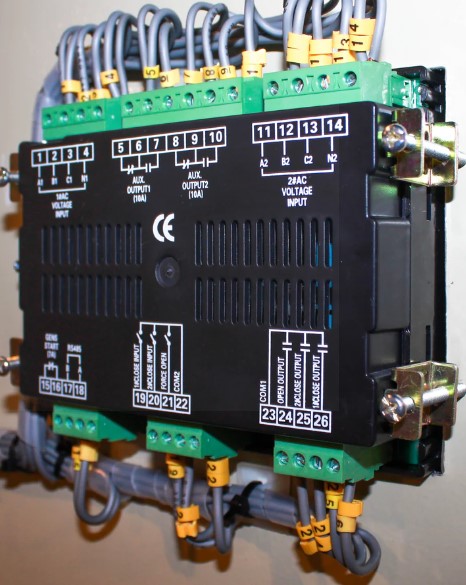

TRONIC Automatic Transfer Switch (ATS) controller uses microprocessor as its core which can precisely monitor voltage (loss of main power). The ATS will start functioning in the following circumstances; loss of power, over voltage, under voltage phase.

100A 4 pole automatic transfer switch unit which, in the event of a power outage, will automatically start a generator and transfer the load over to the Generator supply. When the Main supply returns to normal, the ATS will transfer the load back to the Main supply and shut down the generator.

Item	Particulars

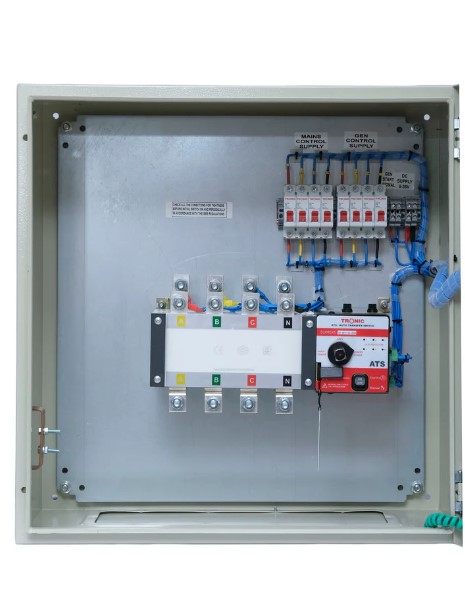

Item Description	An Automatic Transfer Switch Panel is an interlocked isolator switch assembly automatically switch between main power supply and backup power supply in the event of a main power supply failure and recovery respectively.

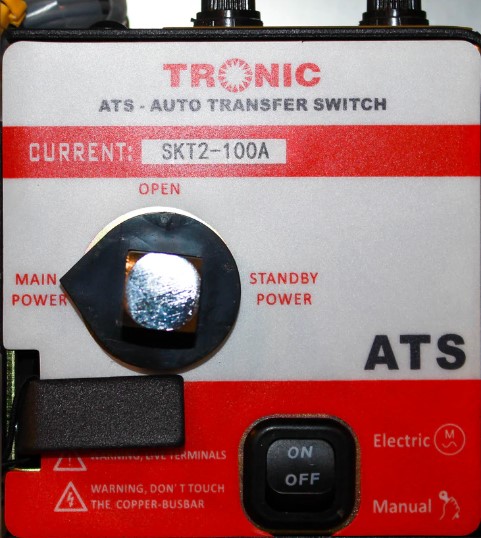

Functional components	Automatic 4-Pole Motorized Isolator Transfer Switch
	Intelligent ATS Controller
Rated Voltage	380V
Rated Current	100A-1250A
Control Voltage	220VAC
Features	Readymade & simple, safe operation
	Shock-Resistant Enclosure
	Compact Design
	User-friendly operation
	Two-wire genset start/stop signal provision
	Incoming Supply phase monitoring and failure protection
	Elegant & sleek in appearance
	Manual operation possible (Physically on the switch or remotely from the panel controller)
	Power Terminations	Top	Main/Primary 3-Phase 4-Wire Input Supply
			Backup/Secondary 3-Phase 4-Wire Input Supply
		Bottom	Common 3-Phase 4 wire Output to Load

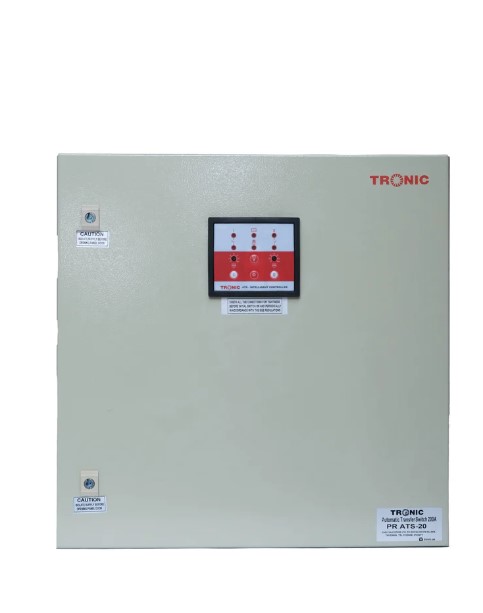

Enclosure details	Dimensions	Current Rating (A)		Width (mm)	Height (mm)	Breadth (mm)
		100		400	500	200
		150/160/200/250		600	600	300
		400/630		800	1000	400
		800/1250		800	1600	500
	Color	RAL 7032
	Coating	Epoxy Polyester Powder Coating Textured Finish
	Mounting	100A-630A		Wall-mountable
		800A		Free-standing
	Cable entry	Bottom
	Mechanical Impact Rating	IK 10
	Ingress Protection Rating	100A-630A		IP66
		800A		IP55
	Material & Coating	Steel
Operating environment	Ambient Temperature	-5°C to +35°C
	Altitude
	Water and moisture	Minimal water jets and Moisture
	Vibration & Gas	No strong vibrations and no harmful gases that may corrode the metallic parts or the PVC enclosure and damage the insulation
